The HEX Jr.

Item Code: HEX Jr

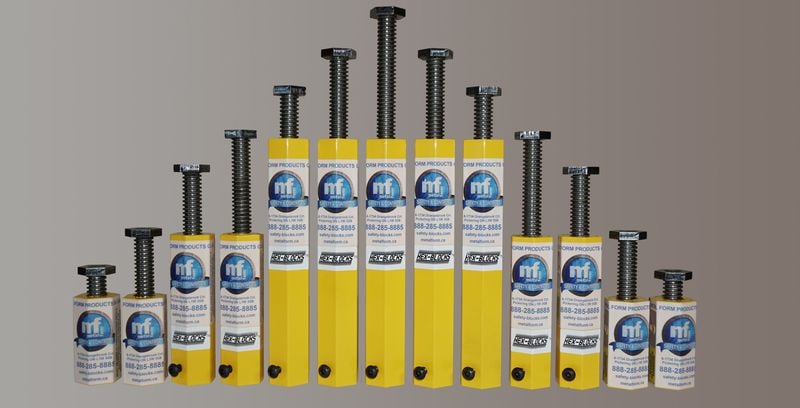

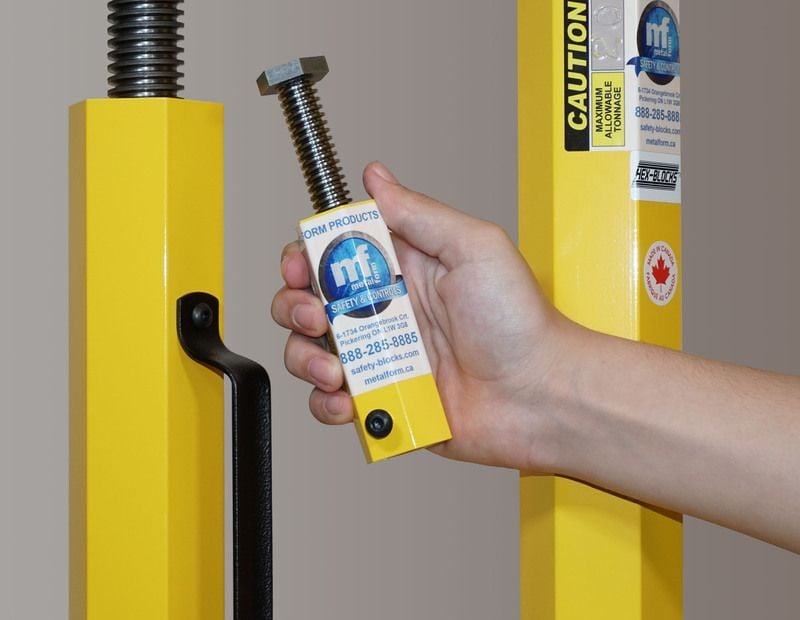

The Hex Jr. Series of safety ram blocks offers incredible versatility thanks to its small foot-print, low weight and high load capacity. With models available spanning ranges from 2" to 3", up to 8" to 12" and load capacities of 5 tons, the Hex Jr. is the ideal solution for many smaller punch and press brakes.
Each Hex Jr. Safety Ram Block is also factory-equipped with an accessory bolt for the safety interlock at no extra cost!

Standard Features:

  • 6061-T6511 extruded Aluminum body.
  • 5 ton static load capacity.
  • Adjustable models include heavy-duty, ACME threaded steel rods and nuts.
  •  Factory equipped with an interlock accessory bolt. (interlocks sold separately)
  • Available in both Fixed-Height and Height-Adjustable models.
  • Factory-applied, safety-yellow, powder-coat finish.
  • Proudly made in North America.

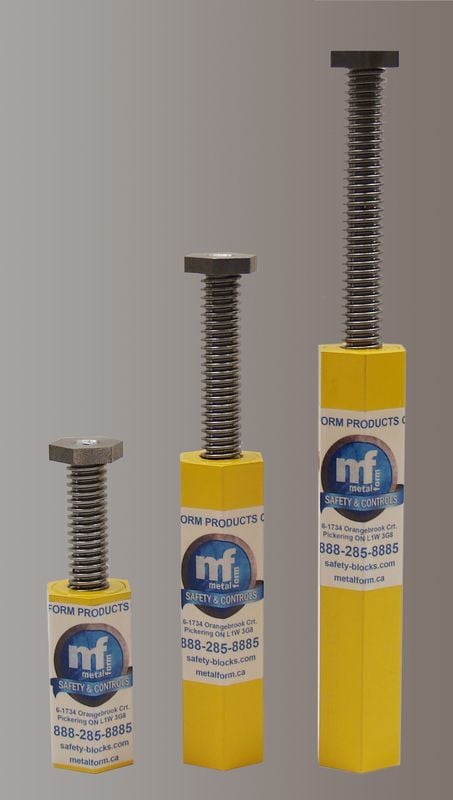

In-Stock Hex Jr. Blocks:

Jr. 3-5  2" of adjustment, 5 ton static load capacity. Weight is only 1 lb.

Jr. 5-8  3" of adjustment, 5 ton static load capacity.  Weight is only 1 ½ lbs.

Jr. 8-12  4" of adjustment, 5 ton static load capacity. Weight is only 2 lbs.

Common Options for the Hex Jr.:

Adjustable Units

  • Base Plates
  • Safety Interlock Kits
  • Hex-Jr. Storage Hangers.
  • Hex Wrench. Use to free blocks from hydraulic presses with ram drift.

Fixed Height Units

  • Bottom Plates
  • Top Plates
  • Safety Interlock Kits
  • Hex Storage Hanger (Requires optional base and or top plate)
