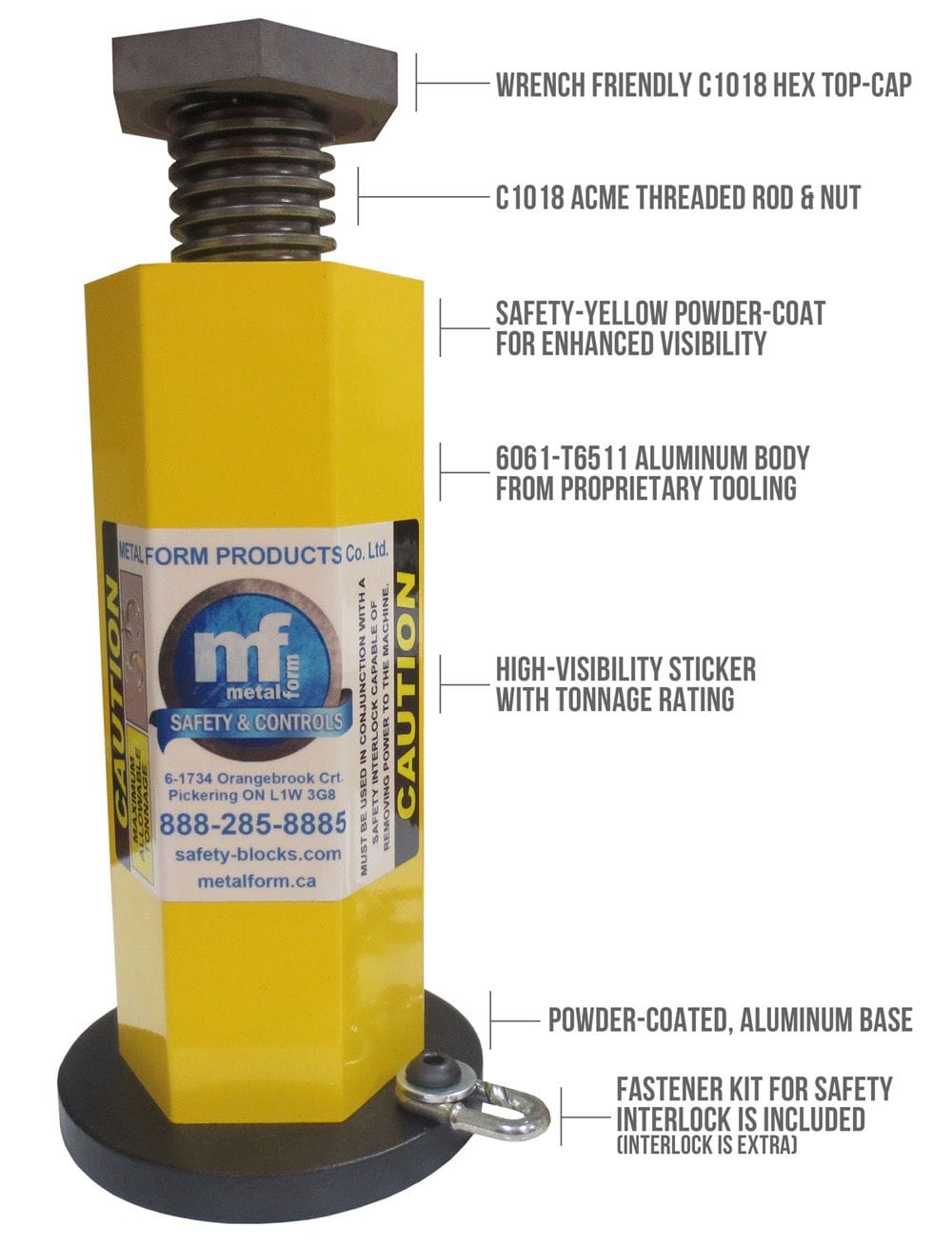

Safety Ram Block Features

Key Features

  • Manufactured in Canada from 6061 T6 Aluminum
  • High capacity to weight ratio
  • User-friendly size encourages use
  • High-Visibility yellow helps ensure compliance
  • Durable, powder-coated finish
  • High Strength nut & rod assembly from C1018 steel
  • Factory prepared for safety interlock devices
  • Wide range of available sizes
  • Custom Colors available for color-coded device programs
  • Multiple interlock options available
Type  Screw Size Load Rating

Hex Jr. 2" Up to 5 Tons
  3" Up to 5 Tons
  4" Up to 5 Tons


Multiple Hex Jr. or Hex Blocks are required for greater loads


Hex Block 5" Up to 35 Tons
  8" Up to 30 Tons
  10" Up to 20 Tons
  12" Up to 17 Tons

 Fixed-Height Hex-Block assemblies available for loads up to 60 tons.

Multiple Hex or MAX Blocks are required for greater loads.




Max Series 5" Up to 100 Tons
  8" Up to 100 Tons
  10" Up to 80 Tons
  12" Up to 75 Tons

Fixed height MAX-Block assemblies available for loads up to 170 tons

 Multiple MAX Blocks are required for greater loads.
